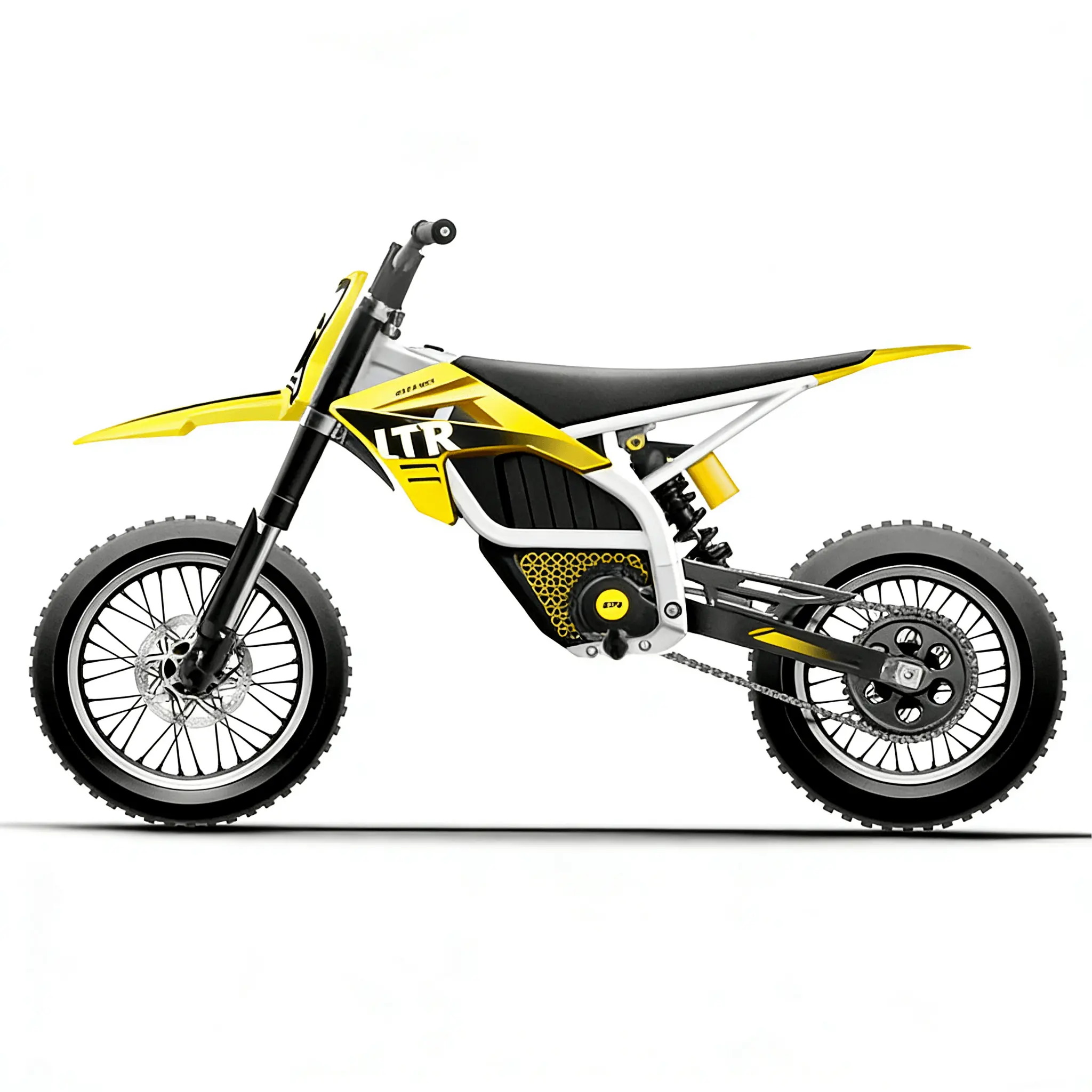

China 4000W 48V 20Ah Electric Motorcycle Manufacturers, Supplier

This 4000W 48V 20Ah electric motorcycle, designed for the global market, redefines performance standards for urban commuting and light off-roading. Equipped with a high-power-density hub motor boasting a peak power of 4000W, and a high-voltage battery using LG cells, it delivers a top speed of 55km/h and a long-lasting range of 65km (measured at 25km/h). Understanding the stringent reliability requirements of dealers for core components, we have opted for industry-leading LG cells as standard, ensuring battery cycle life and low-temperature stability. The overall design balances handling and load-bearing capacity, with a carbon steel frame and a 240mm ground clearance allowing for easy handling of complex road conditions.

Product Description

Product details

Peak Power
4000W
Battery
48V 20Ah (LG Cells)
Max Speed
55km/h
Range
65km @25km/h
Frame
Carbon Steel
Tire Size
F: 60-100 /14'', R: 80-100 /12''
Wheel Base
1050mm
Min Ground Clearance
240mm
Seat Height
700mm
Max Torque
140N.m
Front Fork Travel
115mm
Rear Shock / Wheel Travel
50mm / 190mm
Display
TFT
Charger
56.4V 4.5A
N.W. / G.W.
57 / 65kg
Dimension
1550mm*720mm*980mm
Packaging Size
1330*325*620mm
Color
Options

Product advantages

4000W 48V 20Ah Electric Motorcycle
Top-Tier Core Performance and Safety Guarantee

Equipped with a peak 4000W high-power motor and 140N·m of ultra-high torque, it delivers rapid power output, effortlessly navigating hills and obstacles. It features a 48V 20Ah high-density battery pack using rigorously selected LG original cells, significantly improving cycle life and slowing energy decay compared to ordinary cells, ensuring commercial value for long-distance delivery and high-frequency use. A maximum speed of 55km/h balances efficiency and safety, ideal parameters for commuting in major overseas markets.

48V 20Ah Electric Motorcycle
Professional-Grade Chassis and Off-Road Capability

Based on a 1050mm golden wheelbase and carbon steel frame, it achieves a balance between high-speed stability and handling agility. A minimum ground clearance of 240mm provides excellent off-road capability, easily traversing curbs or unpaved road obstacles. 115mm front fork travel, combined with a high-load-bearing rear suspension, effectively filters vibrations. The front and rear 14/12-inch wheel diameters enhance grip on complex road surfaces, ensuring a superior riding experience under heavy loads.

Why choose us

Wuyi Yuema Leisure Products Co., Ltd. has more than 20 years of production experience. It is a private enterprise integrating production, trade and service. The company is located in Tongqin Hardware Industrial Zone, Wuyi, Zhejiang. It mainly develops, produces and sells remote control electric scooters, elderly scooters, electric wheelchairs and other models.

We have a group of highly qualified engineers and a high degree of professionalism. They are diligent and innovative, keeping up with international fitness sports and leisure trends, and developing various scooters and leisure products. Now our products and services have been exported to multiple markets such as Europe, North America, South America, Asia and Oceania markets.

In strict accordance with the requirements of modern enterprises, we have established and improved the management system, quality assurance and service system. We always adhere to the belief of "customer first, quality is life" to provide customers with high-quality products. Our products have passed certain certifications, such as CE/SGS Rohs certification. We sincerely hope to cooperate with more domestic and foreign customers, let us work together to create a better future!

FAQ

Q1 What is the range of this electric scooter?

The range of the EC-02 electric scooter is 30-60 kilometers, and the specific range will vary depending on riding speed, road conditions, load and other factors. It is recommended to control the speed reasonably during use to extend the range.

Q2 How long does it take to charge?

The charging time is about 6-8 hours, and the specific time may vary slightly depending on the charging environment and charging equipment. It is recommended to use the original charger when charging and avoid charging in a low temperature environment to ensure the service life of the battery.

Q3 What is the maximum load of this scooter?

The maximum load of the EC-02 electric scooter is 115kg, which can meet the use needs of most adults. But for safety reasons, it is recommended not to exceed the maximum load to ensure the safety and stability of riding.

Q4 What age group is this scooter suitable for?

The EC-02 electric scooter is suitable for teenagers and adults. Its design is ergonomic, the riding posture is comfortable, and the operation is simple and easy to learn. Both beginners and experienced riders can easily get started.

Q5 Are the tires of this scooter solid or pneumatic?

The EC-02 electric scooter uses 14-inch solid tires, which have good wear resistance and puncture resistance. There is no need to worry about the tire being punctured, and it also reduces maintenance costs, making your riding more worry-free.
